PDU Metered 200-240V 20A 8 C13
Quantity in Basket: None
Code: DHPDUMH20HV
Price: $133.34
Shipping Weight: 7.20 pounds

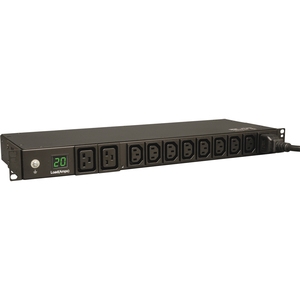

"PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered. Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Included mounting brackets support horizontal installation in 19 inch racks or other surfaces, such as under-counter or wallmount configurations. Key Features 208/240 & 230V metered 1U horizontal mount Power Distribution Unit (PDU) 20A maximum capacity (Agency de-rated to 16A) Includes L6-20P and C20 line cord options (detachable via C20 inlet) 10 total output receptacles (8 C13 and 2 C19) Outlets are arranged in a single unbreakered, metered load bank Current meter offers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications Easy to read, two-character LED display offers continuous whole-PDU current monitoring data in one-amp increments Included cord retention brackets keep vital network equipment plugged in and continuously powered 1U rackmount installation supported in 2 or 4 post racks Typical Applications Ideal for network configurations requiring a metered PDU Package Includes Rackmount PDU Rack mounting brackets"
